CE (Conformité Européenne) Marking: No
Name: Advanced Photonix
Address: 1240 Avenida Acaso, Camarillo, CA 93012 USA
Email: Tel: +1805-987-0146
Based in EU: No
NORPS12 is a highly stable,sensitive photoconductive cell with a spectral response similar to that of the human eye. Packaged in a moisture resistant epoxy filled plastic casing.
This device contains cadmium sulphide which is restricted under the RoHS regulations and is not RoHS compliant.
Max current: _x0009_ 75mA
Min dark resistance:_x0009_ 1M
Max power dissipation 250mW at 30 deg C
Max voltage rating:_x0009__x0009_ 320V peak AC or DC
Resistance @ 1Ftc:_x0009__x0009_ 9K
Temperature Range_x0009__x0009_ -60 to + 75 deg C
Typical resistance @100 Ftc: 400R

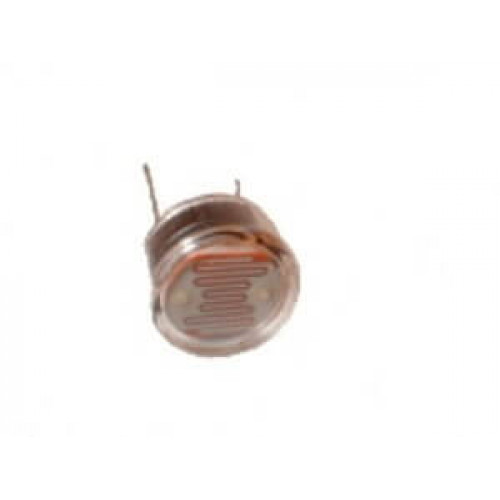

NORPS-12 Light Dependent Resistor
- Product Code: 530-081
- Manufacturers Part No #: NORPS12
- Availability: 16
- Life Cycle: Current
- Country of Origin: Mexico
- Pack Quantity:
- Packaging: Bag
- Tarrif No: 85414090
- RoHS: No
-
Price (each) excluding VAT
- £1.6500 1+
- £1.5900 25+
- £1.5500 100+
- £1.4500 500+
